Pipeline Circulation Pump

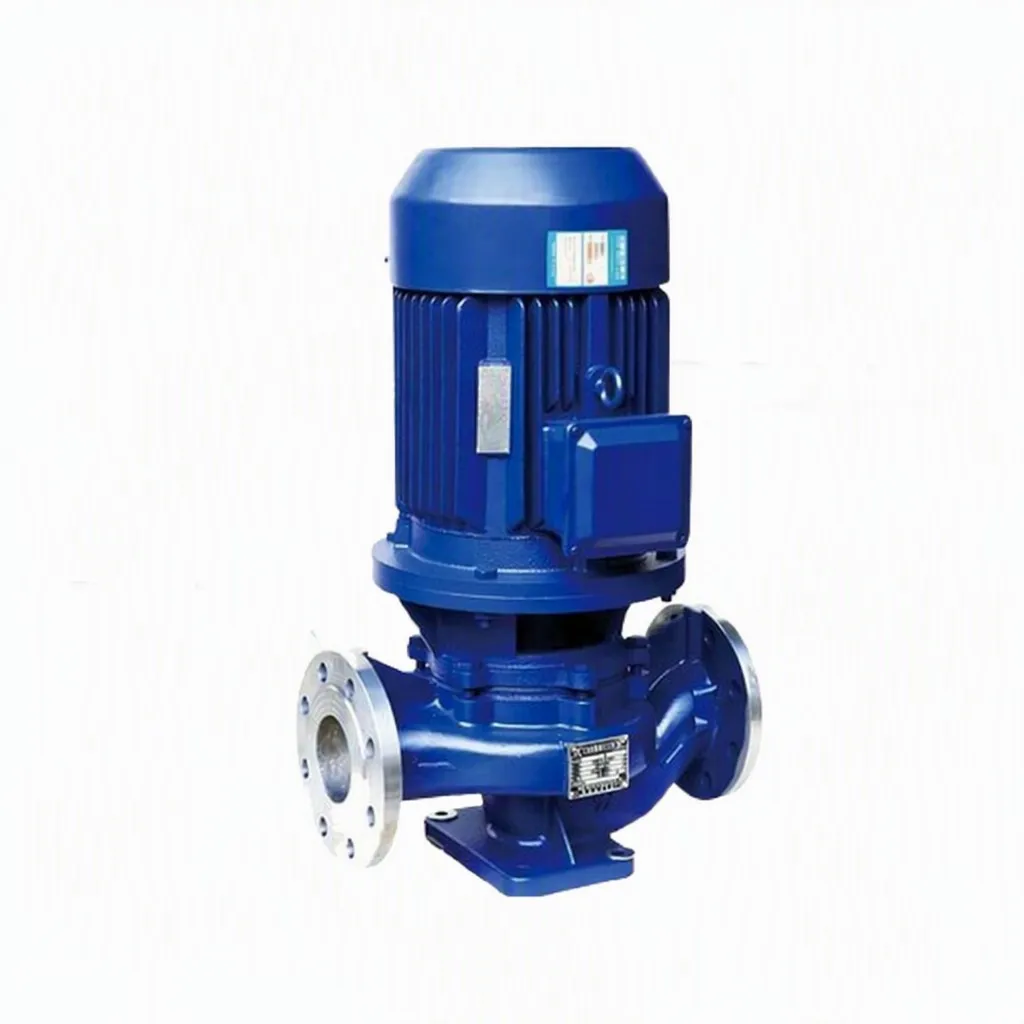

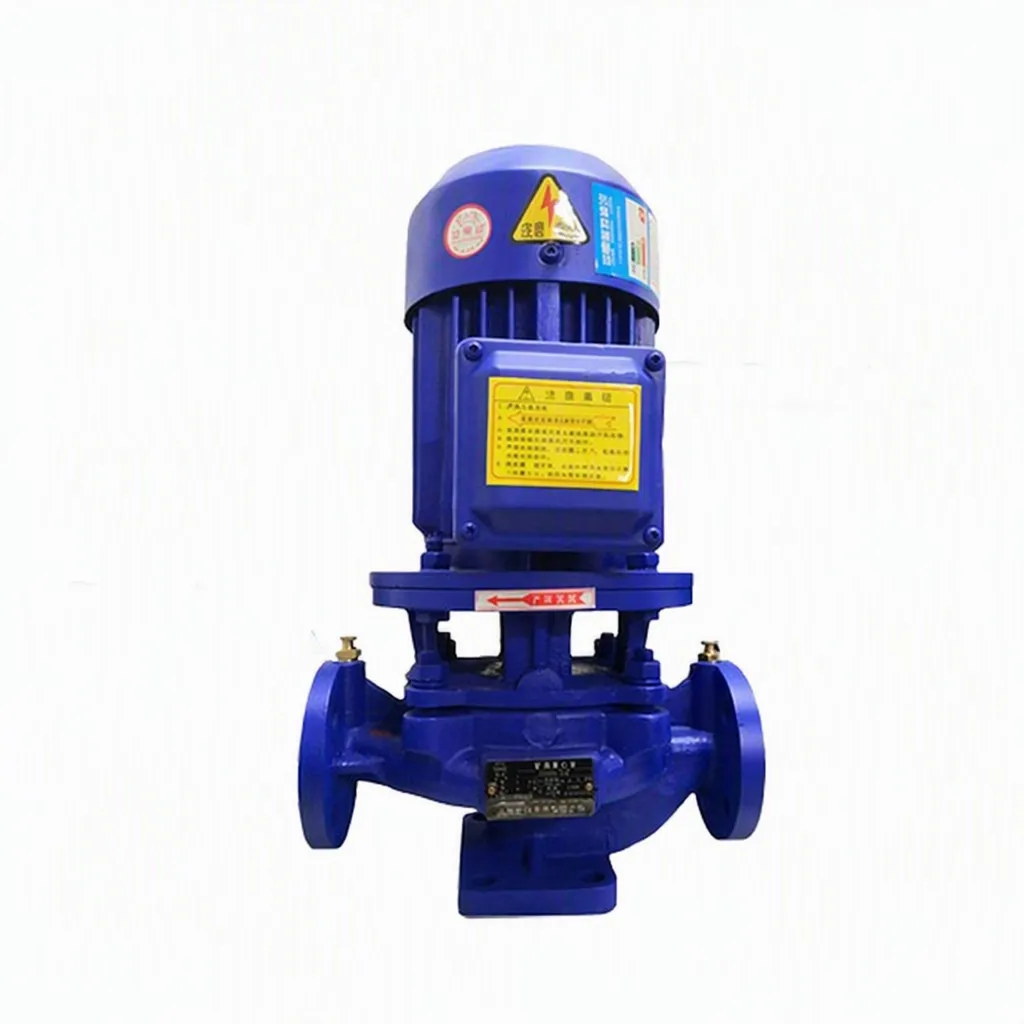

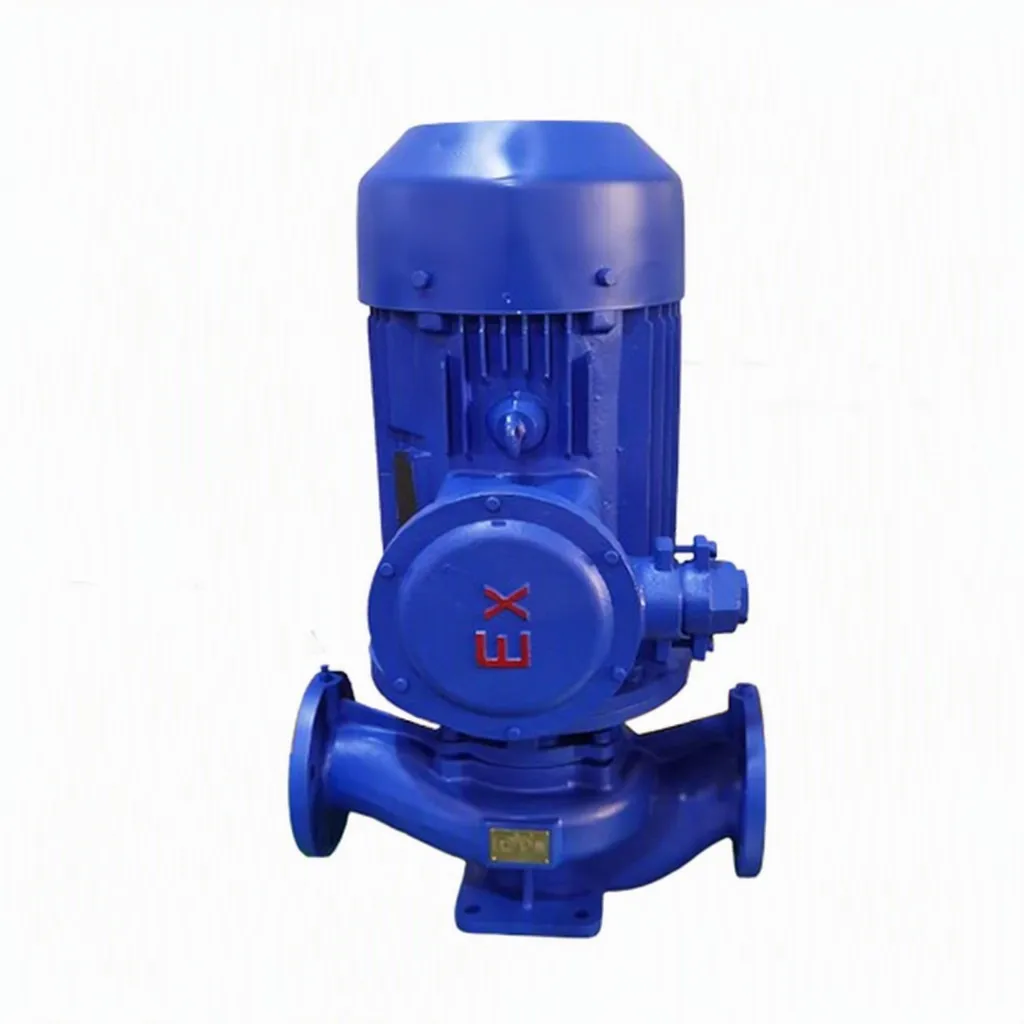

Inline Pipeline Circulation Pumps
Pipeline circulation pumps sit directly in the pipe run, so they need no foundation and take up almost no plant floor. That makes them the natural choice for heating, cooling and process loops where the pump is one component in a long circuit rather than a standalone station. The range covers two series: the ISG vertical inline design and the multistage GDL design.
Series overview

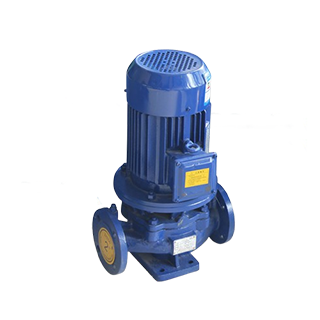

- ISG — vertical inline pipeline pump for general circulation duty.

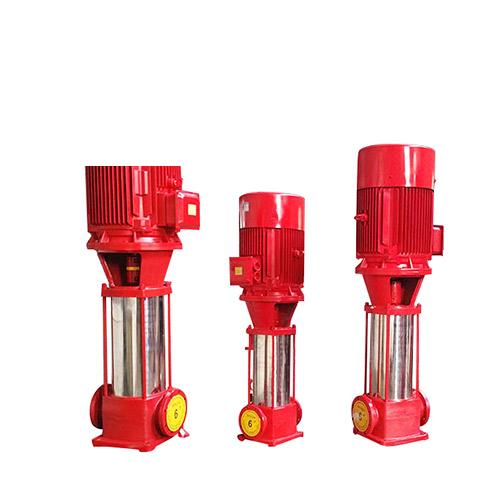

- GDL — vertical multistage inline pipeline pump for higher head in the same footprint.
Published performance range
Flow is published from 1.6 m³/h to 1200 m³/h, head from 5 m to 150 m, with motor power from 0.18 kW up to 132 kW. Because the two series overlap across that envelope, the choice usually comes down to how much head is needed in a given pipe size: the multistage GDL adds stages rather than adding floor area.
Typical applications
- HVAC heating and cooling loops
- Hot water circulation
- District heating networks
- Industrial process loops
- Pipeline circulation and pressure boosting
Frequently asked questions
What is the difference between the ISG and GDL series?
Both are vertical inline designs. ISG is the single-stage circulation pump; GDL is multistage, which delivers higher head within the same pipe-mounted footprint.
What flow and head does the range cover?
Flow 1.6–1200 m³/h, head 5–150 m, and motor power from 0.18 kW to 132 kW.
Do inline pumps need a foundation?
No. Mounted directly in the pipe run, they need no separate foundation, which is the main reason they are used in building services and plant rooms with limited space.
Technical selection & RFQ
Request a Quote for Pipeline Circulation Pump
Looking for a Pipeline Circulation Pump supplier for an industrial project? Share the operating conditions below so our team can review the duty, recommend a suitable configuration and prepare a quotation. Final model selection and performance should be confirmed against your actual process conditions and the applicable product data.
Information to include in your inquiry
- Duty point: Required flow rate and total head / discharge pressure; include the operating point if known
- Pumped medium: Fluid name, concentration, viscosity, density, solids content and corrosiveness
- Operating conditions: Normal and maximum temperature, inlet pressure, suction lift and duty cycle
- Materials & sealing: Preferred wetted materials, seal type and any leakage or hygiene requirements
- Motor & installation: Voltage, frequency, phase, hazardous-area requirements if applicable, and mounting / connection details
Not all details are available yet? Send the information you have, your datasheet or a process description. We can identify the missing selection data before confirming a model.
